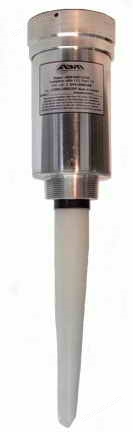

ABM300-050R ABM400-050R ABM400-100R ABM300-100R雷達(dá)"聰明"液位變送器Radar "Smart" Level Transmitter
Simple push-button calibration ( Accurate )
Output 4-20mA / 20-4mA ( Isolated on 4 wire model's only )
Option RS232 or RS485 communications with calibration, diagnostics
& data logging software
PLC compatible ( Modbus RTU )
Three or Four wire operation
+/-0.25% of maximum target range ( in air )
6.3 GHz of frequency
Output 4-20mA / 20-4mA ( Isolated on 4 wire model's only )
Option RS232 or RS485 communications with calibration, diagnostics
& data logging software
PLC compatible ( Modbus RTU )
Three or Four wire operation
+/-0.25% of maximum target range ( in air )
6.3 GHz of frequency
FEATURES
Simple push-button calibration
(Accurate)
Output 4-20 mA / 20-4mA
(Isolated on 4 Wire Model’s only )
Optional RS232 OR RS485
communications with calibration,
diagnostics & data logging software
PLC compatible (Modbus RTU)
Three or four Wire Operation
APPLICATIONS
Food and Beverages
Water / Wastewater
Chemicals with vapors
Solids Ranges Approx. 1/2 of liquids
MECHANICAL
Conduit Entry 1/2” NPT
Enclosure Aluminum
Or Stainless Steel - 94V0
Ingress Protection NEMA 4 (IP65)
ENVIRONMENTAL
Temperature - 40 to 140°F
(- 40 to 60°C)
Installation Category Class II
Approvals FCC Part 15 - Low
Power Communication Device
730 The Kingsway Peterborough , Ont. K9J6W6 Canada
Tel: (705) 740 — 2010 Web:
Fax: (705) 740 — 2563 : info
PROCESS
Temperature PP Rod - 40 to 190°F (- 40 to 90°C)
PTFE Rod - 40 to 300°F (- 40 to 149°C)
Material Dielectric Єr >2
Pressure 1-10 bar 15-150 psi
OPERATIONAL
Operation Pulse Radar
Accuracy +/- 0.1% of max. range in lab using
4-20mA current output
+/-0.25% of max. range (typically in field )
Frequency 6.3 GHz
Loss of Echo Hold 30 seconds, 22mA output Time
Transmitter Power 50 uW average
Calibration Push-button or programmable
via optional communications port.
Diagnostics (Echo Profile) via communications port
Antenna Dielectric rod (PP, & Optional PTFE)
ELECTRICAL SPECIFICATIONTECHNICAL SPECIFICATIONS S
Self Adjusting “Smart” Radar
Level Measurement Sensors
MODEL RANGE
In Liquids
RESOLUTION MOUNTING
ABM300 - 050R
3 Wire - DC
* - 50 ft.
* - 15 m
0.22”
5.7 mm
2.0” NPT
ABM300 - 100R
3 Wire - DC
* - 100 ft.
* - 30 m
0.44”
11 mm
2.0” NPT
ABM400 - 050R
4 Wire - AC
* - 50 ft.
* - 15 m
0.22”
5.7 mm
2.0” NPT
ABM400 - 100R
4 Wire - AC
* - 100 ft.
* - 30 m
0.44”
11 mm
2.0” NPT
Note - * Minimum Distance starts at the lower tip of the antenna .
750 Ohms (Isolated on 4 Wire only)
115 VAC 60 Hz or 230 VAC 50 Hz
(+/-20%) , 1.7 VA
DC AC
Power
12 to 30 VDC , 0.07 A max @ 24 Vdc
R load = (Vs — 6) / 24 mA
Output 4-20 mA Output 6.1 uA resolution
Optional RS232 or RS485
communications port.
10A 305 R4
2” NPT
ABMXXX-XXXRC = Optional Communications -
Specify 2=RS232 or 4=RS485
or Blank no Communication
R = Radar 6.3 GHz
XXX = Operating Range
400 = AC Power , 300 = DC Power
Simple push-button calibration
(Accurate)
Output 4-20 mA / 20-4mA
(Isolated on 4 Wire Model’s only )
Optional RS232 OR RS485
communications with calibration,
diagnostics & data logging software
PLC compatible (Modbus RTU)
Three or four Wire Operation
APPLICATIONS
Food and Beverages
Water / Wastewater
Chemicals with vapors
Solids Ranges Approx. 1/2 of liquids
MECHANICAL
Conduit Entry 1/2” NPT
Enclosure Aluminum
Or Stainless Steel - 94V0
Ingress Protection NEMA 4 (IP65)
ENVIRONMENTAL
Temperature - 40 to 140°F
(- 40 to 60°C)
Installation Category Class II
Approvals FCC Part 15 - Low
Power Communication Device
730 The Kingsway Peterborough , Ont. K9J6W6 Canada
Tel: (705) 740 — 2010 Web:
Fax: (705) 740 — 2563 : info
PROCESS
Temperature PP Rod - 40 to 190°F (- 40 to 90°C)
PTFE Rod - 40 to 300°F (- 40 to 149°C)
Material Dielectric Єr >2
Pressure 1-10 bar 15-150 psi
OPERATIONAL
Operation Pulse Radar
Accuracy +/- 0.1% of max. range in lab using
4-20mA current output
+/-0.25% of max. range (typically in field )
Frequency 6.3 GHz
Loss of Echo Hold 30 seconds, 22mA output Time
Transmitter Power 50 uW average
Calibration Push-button or programmable
via optional communications port.
Diagnostics (Echo Profile) via communications port
Antenna Dielectric rod (PP, & Optional PTFE)
ELECTRICAL SPECIFICATIONTECHNICAL SPECIFICATIONS S
Self Adjusting “Smart” Radar
Level Measurement Sensors
MODEL RANGE
In Liquids
RESOLUTION MOUNTING
ABM300 - 050R
3 Wire - DC
* - 50 ft.
* - 15 m
0.22”
5.7 mm
2.0” NPT
ABM300 - 100R
3 Wire - DC
* - 100 ft.
* - 30 m
0.44”
11 mm
2.0” NPT
ABM400 - 050R
4 Wire - AC
* - 50 ft.
* - 15 m
0.22”
5.7 mm
2.0” NPT
ABM400 - 100R
4 Wire - AC
* - 100 ft.
* - 30 m
0.44”
11 mm
2.0” NPT
Note - * Minimum Distance starts at the lower tip of the antenna .
750 Ohms (Isolated on 4 Wire only)
115 VAC 60 Hz or 230 VAC 50 Hz
(+/-20%) , 1.7 VA
DC AC
Power
12 to 30 VDC , 0.07 A max @ 24 Vdc
R load = (Vs — 6) / 24 mA
Output 4-20 mA Output 6.1 uA resolution
Optional RS232 or RS485
communications port.
10A 305 R4
2” NPT
ABMXXX-XXXRC = Optional Communications -
Specify 2=RS232 or 4=RS485
or Blank no Communication
R = Radar 6.3 GHz
XXX = Operating Range
400 = AC Power , 300 = DC Power
